Halon & Clean Agent Fire Suppression: System Recharge, Compliance & Replacement Guide
Halon fire suppression systems were once the gold standard for protecting high‑value assets because of the extinguishing power of Halon 1301. However, production of Halon 1301 and other halons stopped in 1994 under the Montreal Protocol because of their high ozone‑depleting potential. Today, halon fire suppression equipment remains in service for critical applications. Facility managers and procurement officers need clear guidance on when halons are still allowed, how to recharge and recertify bottles, and which agents can replace halons for compliance and sustainability. This guide focuses on those needs and explains how A‑Gas helps customers recharge halon and clean‑agent systems while maintaining regulatory compliance.
Where Halon is Still Legally Used
Production of Halon 1301 ended decades ago, but it is not illegal to use halon. The Montreal Protocol banned new production yet allows reclaimed halons for “critical uses” because re‑use prevents emissions of ozone‑depleting gas. Halon 1301 remains essential for certain industries:
Aviation & Aerospace
The US Environmental Protection Agency notes that reclaimed halons are still used on civil aircraft and in legacy military systems because alternatives have not yet met all performance requirements.
Oil, Gas, & Marine Environments
Fire‑suppression systems protecting offshore platforms, ships, and submarines still rely on Halon 1301 because the agent is very effective in total‑flooding systems and has a low discharge volume. Halon 1301 is most often used as a total‑flooding agent in system bottles.

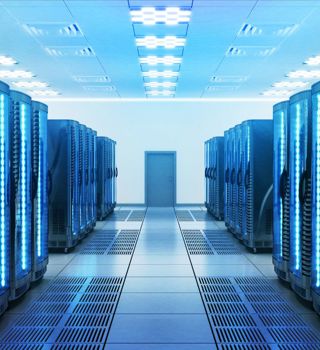

Electronics & Critical‑asset Rooms
Halon is still used in computer rooms and across the electronics industry. It is also found in museum and archival vaults, power plants, aviation facilities, and other high‑value environments where immediate suppression is needed without leaving residue.
In all of these cases, halon must be reclaimed, not produced, and the agent must be handled by certified technicians. A‑Gas runs a halocarbon bank management program where used halon is purchased, reclaimed to ISO 7201 or ASTM D5632 standards, and sold only to critical users.
Recharge & Recertification of Fire Suppression System Bottles

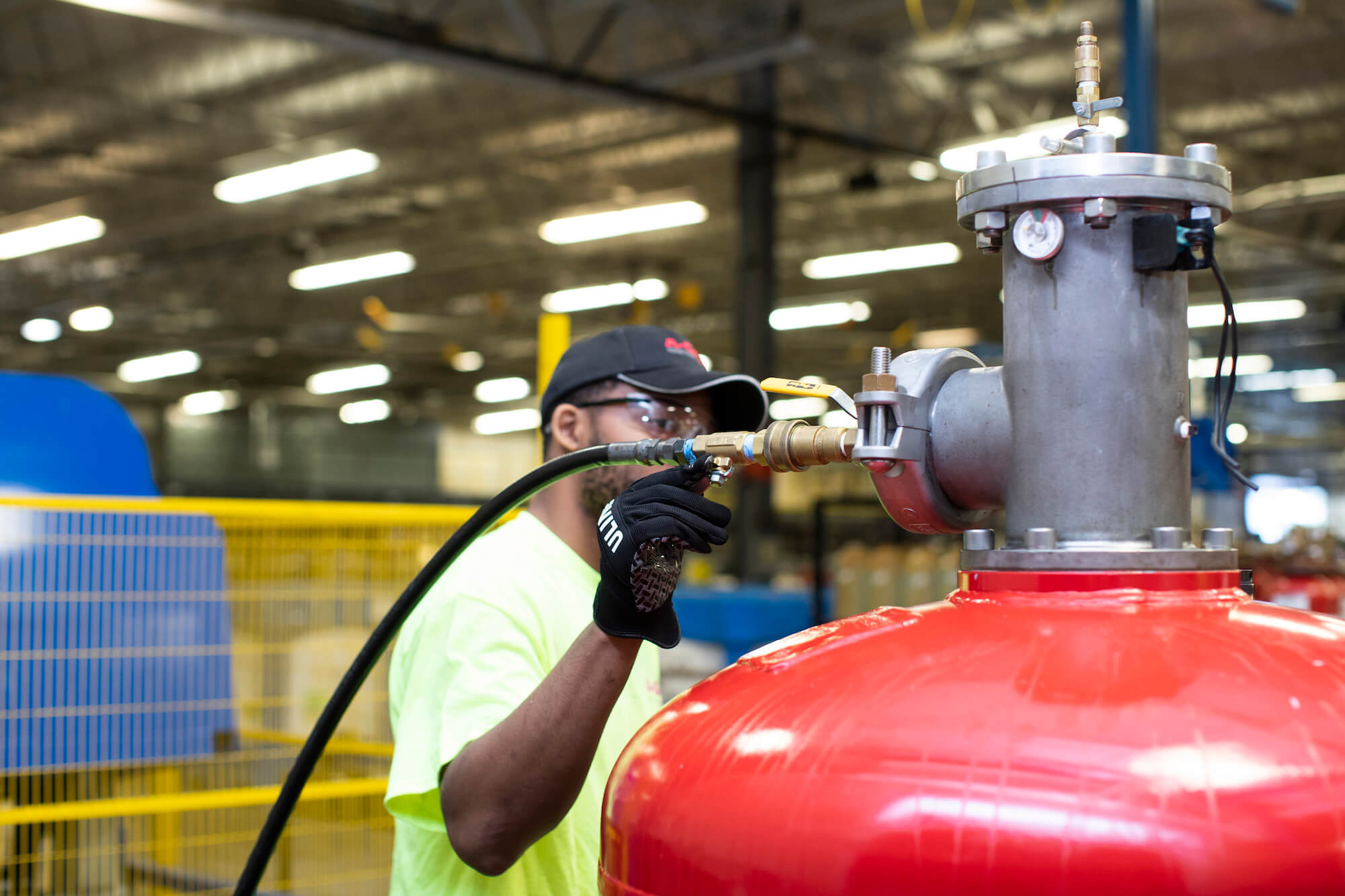

A‑Gas operates an ISO 9001:2015 and ISO 14001:2015 certified facility in Bowling Green, Ohio, as well as a facility in the Las Vegas Basin, dedicated to recharging and recertifying halon and clean‑agent system bottles. Key elements of their Total Solutions® service include:

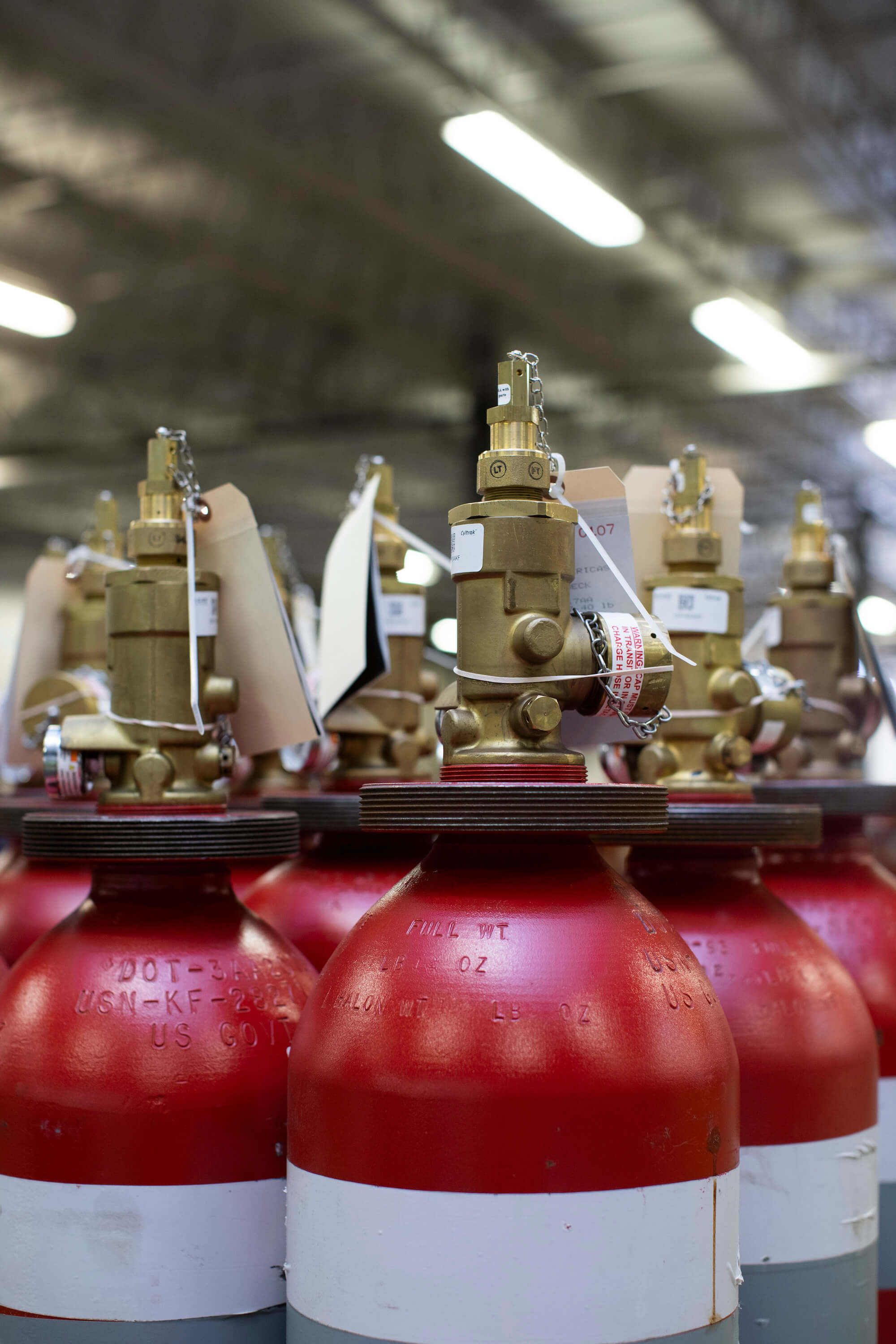

Agents available for recharge – System bottles can be refilled with Halon 1301, HFC‑227ea, HFC‑125, FK‑5‑1‑12 (Novec 1230), and CO₂. A‑Gas maintains hard‑to‑find reload kits for Halon 1301 systems, including Fenwal Top Discharge assemblies.
Certificate of Analysis with every shipment – Recharged bottles contain clean agents that meet or exceed industry standards. Each shipment comes with a Certificate of Analysis to verify the quality of the agent and compliance with ISO or ASTM purity standards.

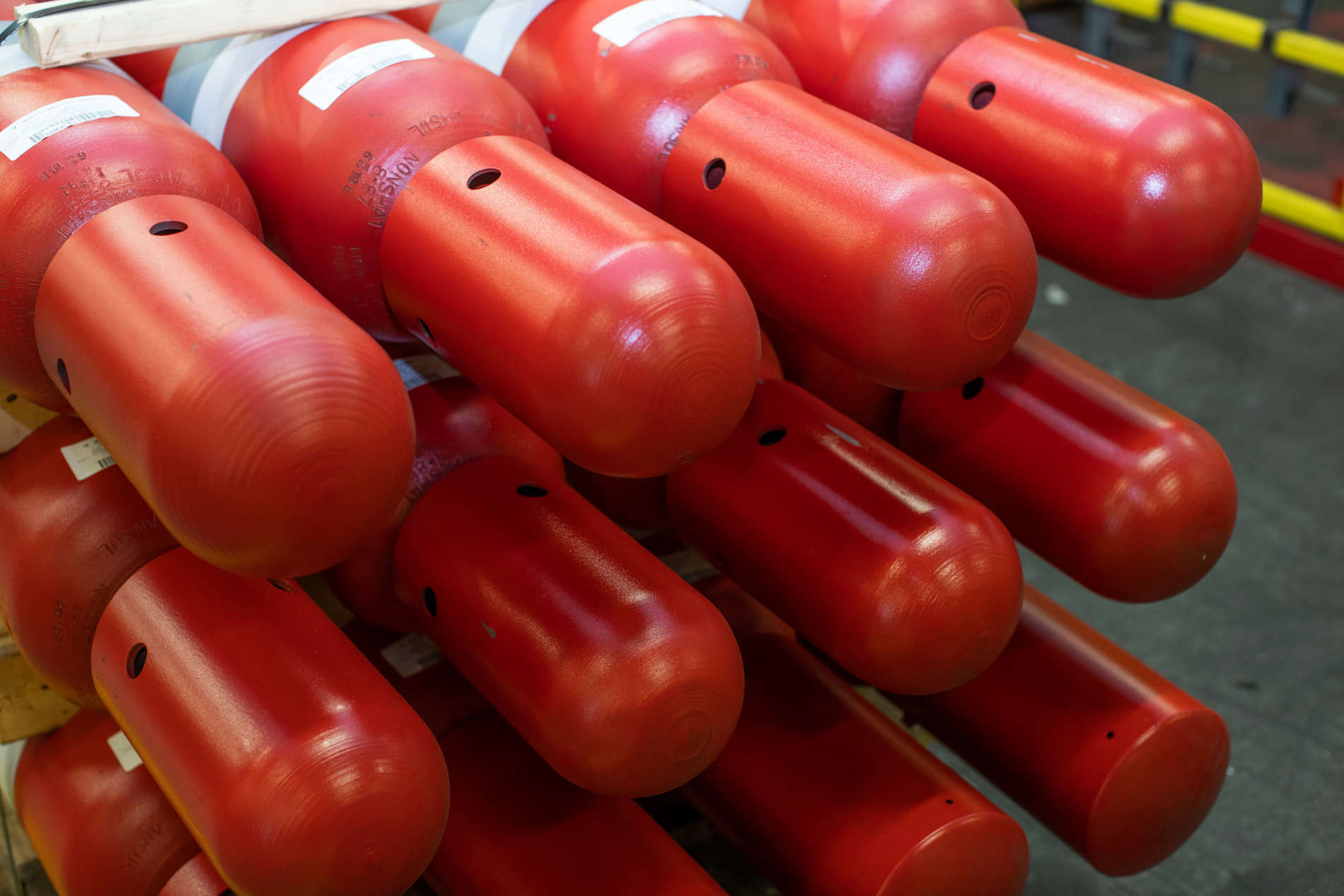

Cylinder inventory & Simple Swap Program – To reduce downtime, A‑Gas keeps an extensive inventory of system cylinders. If a customer’s cylinder is leaking or has discharged, A‑Gas will fill a cylinder from its inventory and ship it as a “swap‑in” replacement, then pick up the empty cylinder. This Simple Swap program reduces equipment downtime and avoids waiting for cylinder refurbishment.
Quick quotes itemized by line – When customers request a recharge quote, A‑Gas breaks down the cost by line item, including agent price, valve rebuild, cylinder recertification, and freight. The quote also states whether the needed cylinder is in stock and provides an estimated turnaround time. Pricing varies based on agent type and cylinder size; customers must request a quote for current prices.

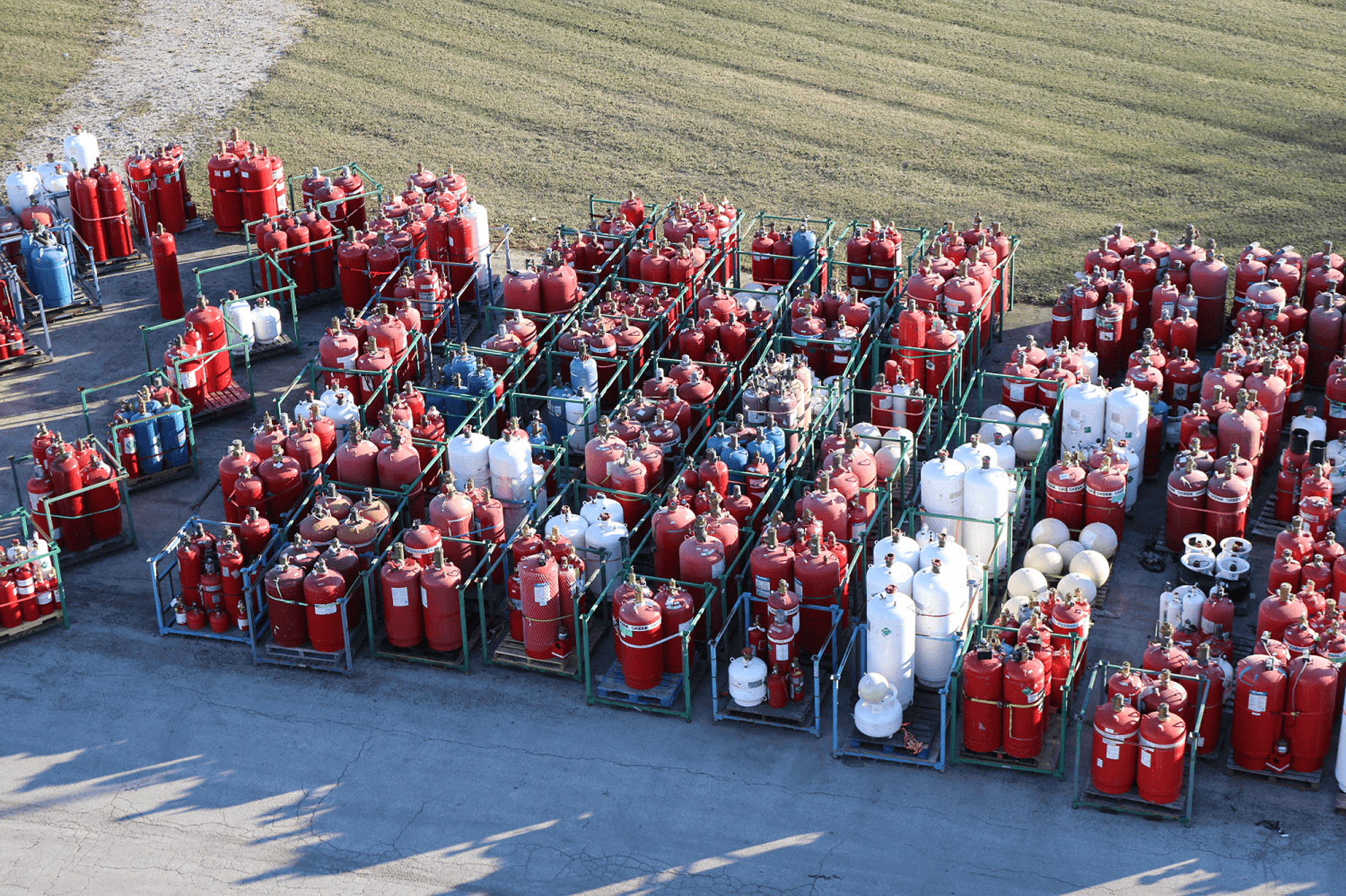

Strategic reserve for rapid turnaround – A‑Gas maintains a Clean Agent Strategic Reserve of over 2,000 cylinders. Customers may also bank reclaimed agent in bulk to hedge against market shortages.
Recharge Process Overview
- Quote request – Customers fill out the online recharge form, specifying agent type (Halon 1301, HFC‑227ea, HFC‑125, FK‑5‑1‑12, FM‑200R™ or CO₂), pounds required, cylinder manufacturer and model, and whether they need a tank swap or refill.
- Estimate & logistics – A‑Gas sends a quick quote itemizing agent, recertification, and freight costs. For emergencies, customers can call 800‑372‑1301 during business hours or the 24‑hour emergency recharge hotline (614-290-0559) for immediate assistance.
- Swap or refill – If customers choose the Simple Swap program, A‑Gas ships a replacement cylinder from its inventory and picks up the leaking or empty bottle. Alternatively, customers can ship their own cylinder for refill and recertification.
- Quality & documentation – Every refilled bottle is inspected, recertified (if required), and accompanied by a Certificate of Analysis confirming compliance with industry standards.
Replacement Agents

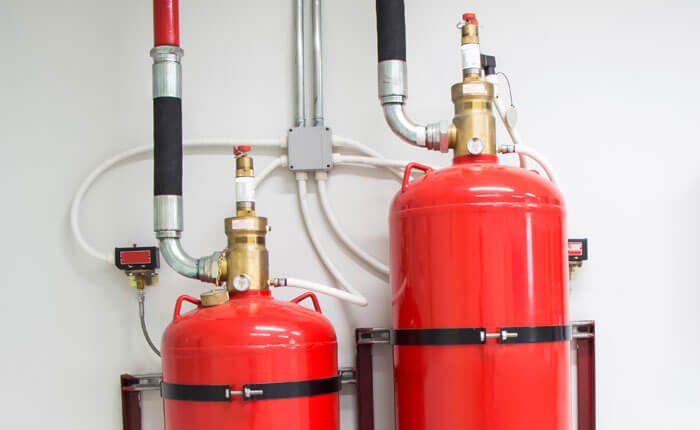

As many halon systems near the end of their life, facility managers consider switching to clean agents that meet current environmental regulations. Two leading replacements supported by A‑Gas are summarized below.
- HFC‑125 (Pentafluoroethane):
- Ozone-depleting Potential: 0; contains no chlorine or bromine
- Typical Applications & Characteristics: A total‑flooding clean agent widely accepted as a replacement for Halon 1301. Electrically non‑conductive, residue‑free, and safe for occupied spaces. Used in larger suppression systems protecting high‑value assets such as data centers and telecommunications rooms. Market names include FE‑25™ and ECARO®.
- FK‑5‑1‑12 (Novec 1230):
- Ozone-depleting Potential: 0; meets current and foreseeable environmental regulations
- Typical Applications & Characteristics: A next‑generation, waterless Halon alternative. Fast‑evaporating liquid that discharges as a gas. Typically used in data processing centers, IT server rooms, museums, and archives, where water or residue cannot be tolerated. Suitable for occupied spaces because of its high safety margin and low global warming potential.
- HFC-227ea (FM-200R™ and FM-200®; Heptafluoropropane):
- Ozone-depleting Potential: 0; contains no chlorine or bromine
- Typical Applications & Characteristics: A widely accepted replacement for Halon 1301. Since the production of CFC’s and bromine containing compounds has ceased, HFC-227ea has been introduced as an environmentally acceptable alternative. HFC-227ea leaves no residue on valuable equipment after discharge and can be used to protect a wide range of applications. It contains no bromine or chlorine and does not contribute to the destruction of the stratospheric ozone. In partnership with Chemours, A-Gas offers reclaimed FM-200, sold as FM-200R™ (R for Reclaimed). FM-200R has the same extinguishing concentrations as FM-200, also with FM approval.
These agents are part of A‑Gas’s recharge offering and can be filled into discharged bottles via the quote form. When selecting a replacement, consider equipment retrofit costs, environmental goals, and compatibility with existing systems. A‑Gas provides guidance on choosing the right clean agent and sells reclaimed and laboratory‑certified products.

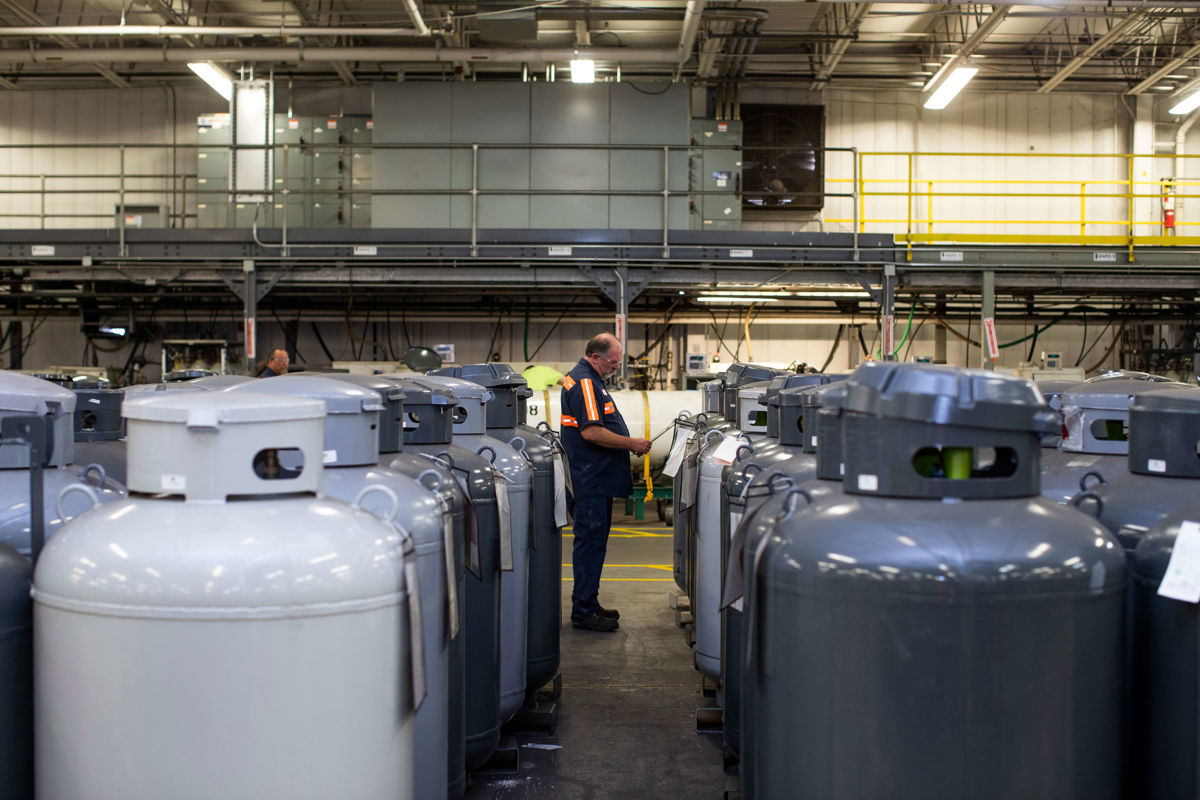

Cylinder Testing & Recertification
Hydrostatic testing ensures that cylinders safely contain pressurized clean agents. A‑Gas is approved to retest 3A, 3AA, 4B, 4BA, 4BW, and ton‑series cylinders. Important points for facility managers:
- Testing frequency – The required retest interval depends on cylinder type and service; most industrial cylinders require testing every five years.
- Regulatory oversight – In the United States, visual and hydrostatic testing is governed by the Department of Transportation (DOT). In Canada, Transport Canada (TC) regulates testing for TC‑rated cylinders.
- Tracking & compliance – A‑Gas uses a proprietary CylTrak® barcode system on its cylinders to track every cylinder’s history, contents, and certification status. This ensures that A‑Gas‑owned cylinders are always within the DOT test date and that customers receive properly certified containers.
- Certified recovery cylinders – A‑Gas provides guidance on distinguishing certified cylinders from counterfeit ones and offers safety checklists and maximum recovery weight guides. Always use certified cylinders and demand documentation before accepting a refill.
Compliance Documentation & Environmental Considerations
Proper documentation is essential to meet regulatory requirements and to demonstrate that halon and clean‑agent systems are recharged responsibly:
- Certificate of Analysis and laboratory certifications – Every bottle or bulk tank supplied by A‑Gas comes with laboratory certification proving the agent meets ISO 7201 or ASTM D5632, D6064, or D6231 standards. Laboratory‑certified agents ensure purity and performance.
- HRC Voluntary Code of Practice – A‑Gas adheres to the Halocarbon Recycling Corporation (HRC) Code of Practice, which promotes safe and environmentally responsible halon reclamation. Reclaimed agents are cleaned through distillation and separation to meet specified performance standards.
- NFPA guidelines for refilling halon – A‑Gas emphasizes that users should follow NFPA guidelines when refilling halon and always demand laboratory certifications for each tank. The company does not sell fire suppression systems but supplies the gases used in these systems.
- Montreal Protocol & EPA regulations – The Montreal Protocol prohibits production of halon but allows reclaimed agents for critical uses, while US EPA regulations govern intentional releases, import/export of halons, and technician training. A‑Gas’ operations comply with these requirements by reclaiming halons, preventing venting, and providing technician training.
Accidental discharges and system failures require rapid response. A‑Gas provides 24/7/365 emergency recharges, supported by a dedicated logistics team:
- 24‑hour turnaround service – For time‑critical situations, A‑Gas offers a 24‑hour turnaround recharge service coordinated by logistics specialists. The team organizes expedited freight for pickup and delivery from any location.
- Emergency contact numbers – During business hours, customers can call 800‑372‑1301; after hours, the Emergency Recharge Hotline (614-290-0559) is available.
- Strategic Reserve – More than 2,000 recertified cylinders are kept in the Clean Agent Strategic Reserve for immediate deployment. Customers can bank agents ahead of time to mitigate price fluctuations and ensure readiness.
- Hard‑to‑find reload kits – A‑Gas stocks rare system reload kits, including Fenwal top discharge assemblies, enabling quick repairs to older Halon 1301 systems.
